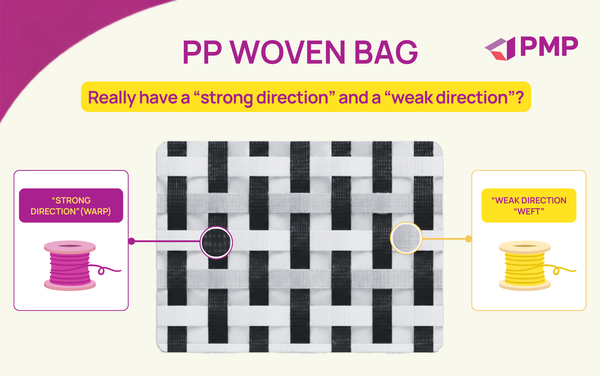

PP WOVEN BAG: REALLY HAVE A “STRONG DIRECTION” AND A “WEAK DIRECTION”?
This difference stems from the fundamental nature of the weaving process: the load-bearing capacity of warp (vertical) and weft (horizontal) yarns is completely different.
Why Warp vs. Weft Tensile Strength Matters?
In the PP woven industry, tensile strength is a critical quality indicator. However, many buyers receive specifications like:
- Warp tensile ≥ 5 kgf
- Weft tensile ≥ 4.5 kgf without fully understanding their true meaning.
The balance between warp and weft tensile strength directly impacts:
- Burst resistance
- Drop test performance
- Stacking stability
- Long-distance transportation durability
If the tensile balance is off, even high-GSM bags can fail. Understanding this concept protects importers from structural risks.
The Nature of Warp and Weft Yarns
- Warp Yarns ("Strong Direction"): Run along the length of the fabric roll. Subjected to continuous tension on the loom and bearing vertical stacking loads in storage, warp yarns are typically engineered for higher tensile strength.
- Weft Yarns ("Weak Direction"): Run horizontally around the bag's circumference. Although their tensile rating is usually slightly lower, weft yarns play a decisive role in maintaining bag shape and preventing side bursts.
Comparing Warp vs. Weft Tensile Impact
Tensile Strength vs. GSM: Are They the Same?
No. Higher GSM does not guarantee higher tensile strength.
Tensile strength depends on:
- Yarn width
- Draw ratio during extrusion
- PP resin quality
- Calcium carbonate (CaCO₃) ratio
- Mesh density
Low-cost suppliers may increase the calcium ratio to maintain bag weight, which makes the yarn brittle and reduces actual tensile strength. Weight alone is not a measure of durability.
Key Strategies for Sourcing Quality PP Woven Bags
- Define Dual Specifications: Always require guaranteed minimum tensile strength for both warp and weft, rather than a single generic value.
- Conduct Drop Tests: Tensile balance between warp and weft yarns is key to preventing side bursts during high drops.
- Optimize Calcium Carbonate Ratio: Maintain CaCO₃ filler at standard levels to preserve yarn flexibility and prevent tearing during transit.
Understanding force distribution allows businesses to select the right packaging specifications, optimizing material costs while ensuring complete cargo safety across the supply chain.
Looking for a PP woven bag solution (25kg – 50kg) that meets strict tensile standards, prevents bursts, and optimizes cost? PMP offers standard technical consulting, rigorous testing, and cost optimization without hidden expenses.
